NdFeB Magnet Coatings Compared: NiCuNi vs Epoxy vs Zinc vs Parylene — Specification Guide with Salt Spray Data

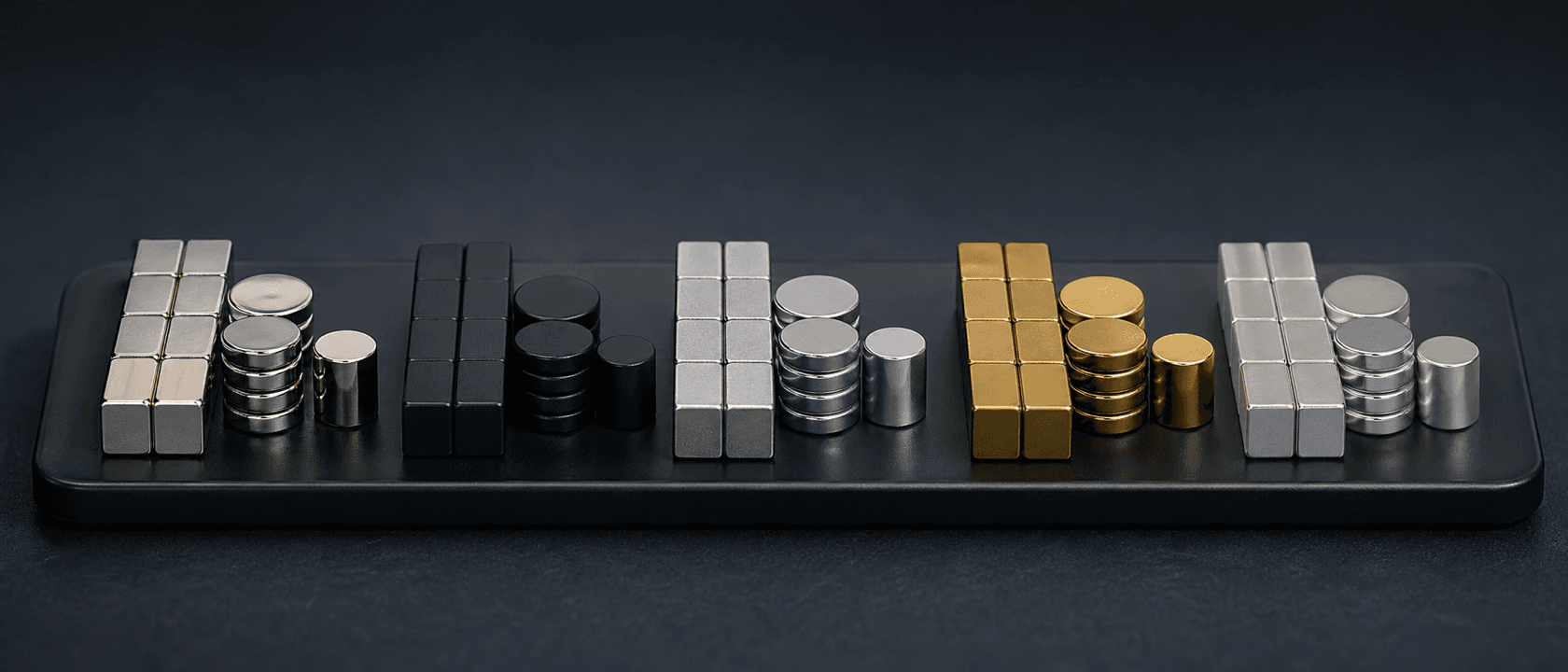

Sintered NdFeB is a structurally porous, highly reactive material. Left uncoated, it oxidizes rapidly in humid air, corrodes aggressively in salt spray, and flakes along grain boundaries once corrosion starts. The coating is not a cosmetic layer - it is the only thing standing between your motor magnet and a failure mode that looks like a rusty stone after eighteen months in service. And yet coating is often the last specification addressed in a drawing, chosen by default rather than analysis. The wrong coating choice can shorten product life by years, compromise adhesive bonding, or fail in environments the grade itself could have handled. The four coatings that cover roughly 95% of commercial NdFeB applications are NiCuNi, epoxy, zinc, and parylene. Each has a specific sweet spot. Getting that match right is an engineering decision worth ten minutes of thought.

Nickel-copper-nickel is the industry default for a reason. It is a triple-layer electroplated system - a flash nickel layer for adhesion, a copper layer for corrosion resistance and leveling, and an outer nickel layer for hardness and appearance. Total thickness is typically 15-25 microns. The outer nickel gives NiCuNi its characteristic bright silver finish and its wear resistance. The intermediate copper layer is what actually blocks most corrosion paths. For standard indoor and light outdoor use - robotics, servo motors, consumer electronics, industrial equipment - NiCuNi is the right answer more often than not. It survives 24-72 hours of neutral salt spray testing per ASTM B117, depending on thickness and plating quality, and handles continuous exposure to humid air indefinitely if the coating is defect-free.

• •Structure: Ni (flash) → Cu (barrier) → Ni (hardness/appearance), total 15-25 μm
• •Salt spray performance: typically 24-72 hours ASTM B117 (higher with thicker plating)
• •Operating temperature: up to 200°C continuous, though NdFeB grade limits usually apply first
• •Adhesive bonding: moderate - works with most structural adhesives after surface prep
• •Magnetic impact: negligible (non-magnetic layers, thickness below air-gap tolerances)
• •Typical cost index: 1.0 (baseline for comparison)

Epoxy is a polymer coating, usually applied over a NiCuNi base layer for adhesion. Thickness is typically 15-25 microns on top of the base plating. Where NiCuNi defends through metal passivation, epoxy defends by being a continuous dielectric barrier - moisture, salt, and mild chemicals cannot reach the magnet through an intact epoxy film. This is why epoxy outperforms NiCuNi in salt spray (often 96-200 hours in 5% NaCl) and in environments with chloride, sulfate, or acidic exposure. Epoxy is also the preferred coating when structural adhesive bonding is critical, because the polymer surface develops a strong chemical bond with epoxy-family adhesives. The limitation is mechanical: epoxy coatings are softer than NiCuNi and can be scratched or chipped during handling. For any application where magnets will see impact, sliding contact, or rough assembly, epoxy alone is a mistake - pair it with a NiCuNi underlayer or choose a different system.

• •Structure: typically NiCuNi base + 15-25 μm epoxy topcoat
• •Salt spray performance: 96-200+ hours ASTM B117 (3-4x better than NiCuNi alone)
• •Operating temperature: most epoxies rated 120-180°C continuous
• •Adhesive bonding: excellent - surface chemistry ideal for structural epoxy adhesives
• •Best for: outdoor applications, marine environments, wind turbines, EV motor magnets with adhesive assembly
• •Weak point: impact and scratch resistance lower than metal plating
• •Typical cost index: 1.3-1.6x vs NiCuNi

Zinc coating is the budget option. It is a single electroplated metal layer, typically 8-15 microns thick, sometimes finished with a chromate conversion layer for additional oxidation resistance. Zinc protects galvanically: it is electrochemically more active than the NdFeB substrate, so it corrodes preferentially, acting as a sacrificial anode. This works well in benign environments and is genuinely cheaper than NiCuNi. The problem is that zinc has a finite service life in any environment with meaningful humidity or chloride exposure - once the zinc layer is consumed, corrosion moves to the substrate quickly. Salt spray performance is typically 12-24 hours, half or less of NiCuNi. Zinc is also reactive with many adhesives and paints, making it a poor choice when magnets are bonded into assemblies. We specify zinc mostly for price-sensitive applications with controlled environments: commodity BLDC motors, stationary fixtures, decorative uses, and internal magnet positions where the magnet is never exposed to outside air.

• •Thickness: 8-15 μm, typically with chromate passivation
• •Salt spray performance: 12-24 hours ASTM B117 (shortest of the four)
• •Protection mechanism: galvanic/sacrificial - zinc oxidizes before the magnet
• •Appearance: dull silver to blue-grey depending on chromate
• •Adhesive bonding: poor-to-moderate, reactive surface can cause issues
• •Typical cost index: 0.6-0.8x vs NiCuNi
• •Avoid for: outdoor, marine, chemical exposure, bonded assemblies

Parylene is a vapor-deposited conformal polymer coating - chemically parylene-C for most magnet applications. It is applied in a vacuum chamber where monomer gas deposits onto every surface of the part as a pinhole-free film, typically 5-25 microns thick. The result is a biocompatible, optically clear, chemically inert coating with essentially no outgassing - which is why parylene is the default for implantable medical devices, space hardware, and any vacuum application. Parylene is also uniquely good at coating complex geometries: because it deposits as a gas, it reaches into blind holes, threads, and sharp corners where electroplating and spray coatings leave thin spots. The downsides are cost (parylene is by far the most expensive of the four) and mechanical softness (similar to epoxy, not suitable for impact). For 95% of motor magnet applications, parylene is overkill. For the 5% where it fits - implantable pacemaker components, vacuum pumps, scientific instruments, sensors in reactive environments - nothing else compares.

• •Structure: vapor-deposited conformal polymer, 5-25 μm, pinhole-free
• •Salt spray performance: 200+ hours ASTM B117 at standard thickness
• •Biocompatibility: ISO 10993 compliant (parylene-C), USP Class VI
• •Outgassing: near-zero - suitable for high vacuum and spacecraft
• •Geometry handling: coats complex shapes uniformly (blind holes, threads)
• •Operating temperature: -200 to 125°C continuous (parylene-C); higher grades available
• •Typical cost index: 4-8x vs NiCuNi - specify only when justified

The fastest way to get to the right coating is to run through three questions in order: environment, mechanical exposure, and assembly method. Start with environment. Is the magnet exposed to outside air, salt spray, or chemicals? If yes, you are in epoxy or parylene territory - not NiCuNi, not zinc. If the environment is controlled indoor air with normal humidity, NiCuNi is usually enough. Next, mechanical exposure. Will the magnet see impact, sliding contact, or rough handling during assembly? If yes, NiCuNi belongs in the stack even if you add epoxy on top. If handling is gentle, epoxy or parylene alone may be fine. Third, assembly. Are you bonding the magnet into a rotor or housing with structural adhesive? Epoxy coating gives you the best adhesive bond; NiCuNi works with surface prep; zinc is often problematic; parylene requires specific adhesive chemistries. Apply these three questions and the coating choice narrows quickly.

• •Indoor, moderate humidity, no adhesive bonding: NiCuNi
• •Outdoor, marine, or chemical exposure: epoxy over NiCuNi
• •Adhesive-bonded rotor assemblies with harsh environment: epoxy over NiCuNi
• •Cost-critical commodity applications with benign environment: zinc
• •Implantable medical, vacuum, or spacecraft: parylene
• •High-temperature motors (180°C+): NiCuNi - avoid polymer coatings at the limit
• •Complex geometries with blind features: parylene

Coating specifications are worthless without verification. Before accepting a coating into a production magnet, run the following on qualification samples. Salt spray test per ASTM B117 at the specified duration for your coating. Tape adhesion test per ASTM D3359 - apply scored tape pattern and remove, count percent of coating retained. Coating thickness measurement using X-ray fluorescence (XRF) or magnetic gauge, sampling at least 5 points across the surface. Visual inspection under 10x magnification for pinholes, edge coverage, and contamination. For production runs, require Certificate of Conformance with salt spray, thickness, and adhesion data batch-by-batch - not a generic spec sheet. A reputable supplier will provide this without argument. Any supplier unwilling to share actual batch data should be treated as a supplier with something to hide.

• •Qualification: ASTM B117 salt spray at your spec duration, 3+ samples per lot
• •Adhesion: ASTM D3359 cross-hatch tape test, accept only 4B or 5B classification
• •Thickness: XRF at 5+ points per piece, verify within spec range
• •Visual: 10x magnification for pinholes, edge wrap, inclusions
• •Production: require per-batch COC with actual measured values, not typical values
• •Field verification: for new designs, field-age samples 6-12 months before locking spec

Our Ningbo facility operates full in-house coating lines for NiCuNi, epoxy over NiCuNi, zinc with chromate passivation, and parylene-C through a qualified partner. Every batch ships with salt spray, thickness, and adhesion data keyed to lot numbers. We also run combined coatings - for example, NiCuNi plus epoxy for rotor assemblies in wind turbines and EV motors, or NiCuNi plus parylene for specialty medical applications. Our quality lab runs ASTM B117 salt spray and ASTM D3359 adhesion testing on every coating lot, with retain samples held for six months for traceability. Customers can request enhanced testing (extended salt spray, humidity cycling, thermal shock) as part of qualification for automotive or aerospace programs.
