GBD Magnets Explained: How Grain Boundary Diffusion Cuts Costs Without Cutting Performance

◆GBD applies dysprosium or terbium only to the magnet surface and diffuses it along grain boundaries, reducing heavy rare earth content by 50–70% at equal coercivity.
◆The grain interiors stay pure Nd2Fe14B, which preserves remanence (Br) — GBD-processed magnets often deliver ~1 MGOe higher BHmax than conventionally produced equivalents at the same temperature rating.
◆Dysprosium prices rose sharply alongside NdPr in early 2026 — GBD's 50–70% Dy reduction directly insulates buyers from heavy rare earth price volatility.
◆GBD only matters for high-temperature grades (H, SH, UH, EH). Standard N-grades (N35–N52) without heavy rare earth content are unaffected by the technology.
◆Specifying GBD by default for any SH or UH grade is the right call for robotics, EV traction, and aerospace programs in 2026 — the cost premium over conventional production is small or negative once Dy savings are counted.
◆GBD-processed magnets still fall under MOFCOM export licensing because they still contain Dy/Tb above thresholds, just less of it — GBD reduces cost and supply risk, not licensing scope.

The Rare Earth Cost Problem

High-performance motors — especially in robotics, EVs, and aerospace — need magnets that maintain their strength at elevated temperatures. Traditionally, this means adding Heavy Rare Earth Elements (HREEs) like Dysprosium (Dy) and Terbium (Tb) throughout the entire magnet. These elements increase coercivity (resistance to demagnetization at temperature) but they are expensive and supply-constrained. Dysprosium has traded between USD 200–500/kg over the past five years and is on the list of seven heavy and medium-heavy rare earths under China's April 2025 MOFCOM export controls. For a magnet that is 2–8% Dysprosium by weight depending on grade, this adds significant cost per unit and ties the buyer directly to the most volatile corner of the rare earth market.

What GBD Actually Does

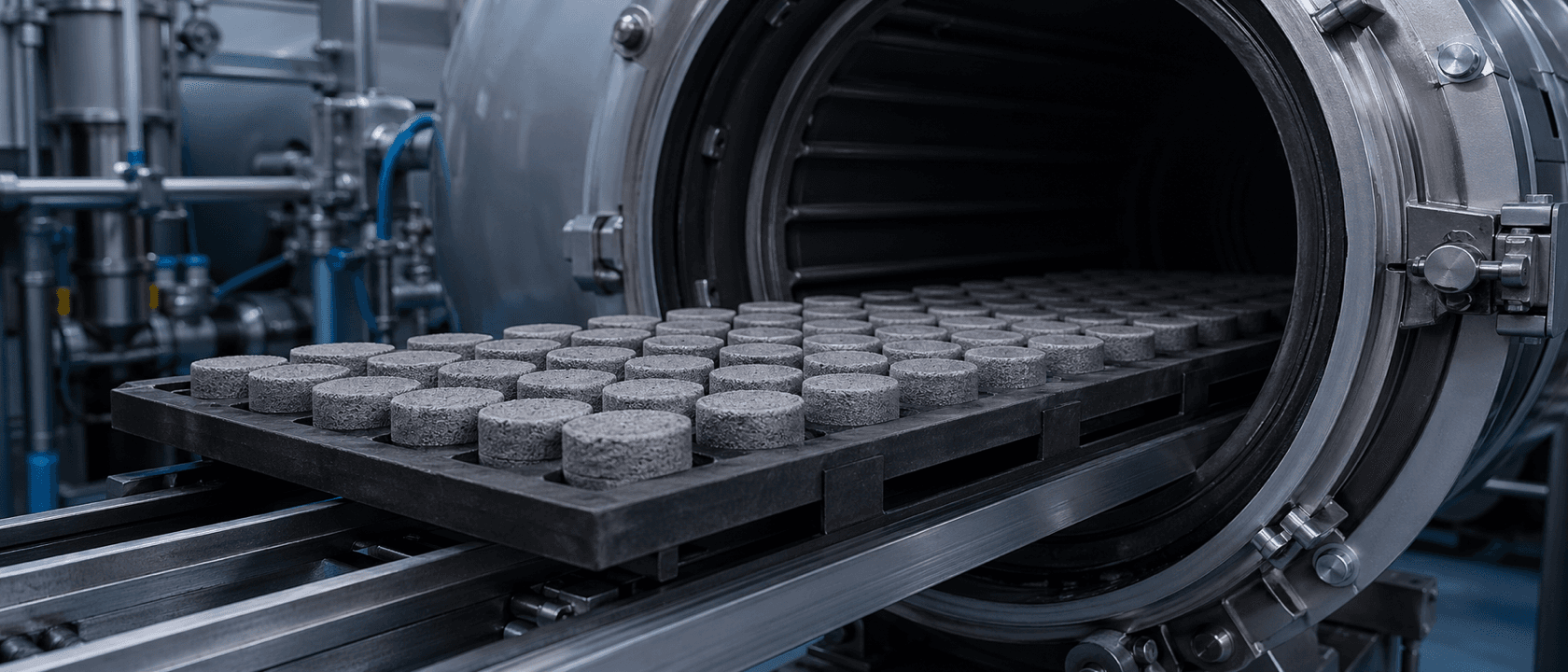

Grain Boundary Diffusion takes a fundamentally different approach. Instead of mixing HREEs throughout the entire magnet (which is wasteful - only the grain boundaries need protection), GBD applies a thin layer of Dy or Tb compound to the magnet surface and then diffuses it inward through heat treatment. The heavy rare earths migrate along the grain boundaries - exactly where demagnetization initiates - while leaving the grain interiors unaffected. This achieves the same high coercivity with 50–70% less HREE usage.

•Standard approach: 2–8% Dy/Tb (depending on grade) distributed uniformly throughout the magnet
•GBD approach: Thin surface application, diffused to grain boundaries only
•HREE reduction: 50–70% less Dysprosium/Terbium needed
•Result: Same Hcj (coercivity) at lower cost - or higher Hcj at the same cost

The Performance Advantage

GBD doesn't just reduce cost - it can actually improve magnetic performance. When HREEs are distributed uniformly, they dilute the main magnetic phase (Nd2Fe14B), slightly reducing remanence (Br). With GBD, the grain interiors remain pure Nd2Fe14B, preserving maximum Br while the grain boundaries get the coercivity boost. This means GBD magnets can achieve higher energy product (BH Max) at the same temperature rating compared to conventionally produced magnets.

Key Insight: In practical terms: a GBD-processed N48SH magnet delivers the same thermal performance as a conventionally produced N48SH but with ~1 MGOe higher energy product and 50–70% less rare earth cost. For robotics companies buying thousands of magnets per month, this adds up fast.

Which Applications Benefit Most?

GBD technology is most impactful for applications that need high-temperature grades (H, SH, UH, EH). If your application uses standard N-grade magnets (80°C max), GBD is not relevant. But if your motors run hot — which most robotics, EV, and aerospace motors do — GBD is a game-changer. GBD-processed N48SH, N45SH, and N42UH are the workhorse grades behind most modern high-performance motor designs.

•Humanoid robot joints: motors run under sustained load, internal temps reach 100–130°C — N45SH/N48SH with GBD is standard
•EV traction motors: continuous duty at 150°C+ requires SH or UH grades — GBD-processed N42SH and N45UH dominate Tier 1 European programs
•Industrial servo motors: high-speed cycling creates thermal spikes that demand temperature margin
•Aerospace and defense actuators: UH and EH grades with GBD reduce both Dy content and export licensing exposure
•Wind turbine generators: N42SH and N45SH with GBD for offshore service life

How to Specify GBD Magnets

When requesting quotes, specify the performance you need (grade, Hcj minimum, Br minimum, max operating temperature) and ask whether GBD processing is available. A good supplier will recommend GBD when it offers a cost advantage and will provide comparative pricing for both GBD and conventional processing.

•Specify: Grade (e.g., N48SH), minimum Hcj (e.g., ≥20 kOe), minimum Br (e.g., ≥13.8 kGs)
•Ask: 'Is GBD processing available for this grade and geometry?'
•Compare: Request pricing for both GBD and conventional options
•Verify: Ask for BH curve data from GBD production batches - not just spec sheets

Mainrich's GBD Capability

Mainrich operates in-house GBD processing for the full range of high-temperature NdFeB grades. Our GBD line supports magnets from small coreless motor rings to large radial multi-pole robotics magnets. We provide GBD-processed magnets with full documentation including BH curves at temperature, Hcj verification, and comparative data against conventional processing. For grade selection guidance, browse our N42SH, N45SH, N48SH, and N45UH specification pages or read the N42 vs N42SH and N45SH vs N48SH comparisons.

FAQ

Frequently Asked Questions

What is grain boundary diffusion (GBD) in NdFeB magnets?

Grain boundary diffusion is a post-sintering process that applies a thin layer of dysprosium or terbium compound to the surface of a finished sintered NdFeB magnet, then diffuses the heavy rare earth inward through controlled heat treatment. The Dy or Tb migrates along the grain boundaries, where demagnetization initiates, while leaving the grain interiors as pure Nd2Fe14B. The result is the same high coercivity at temperature with 50–70% less heavy rare earth content than conventional uniform addition.

How much does GBD reduce dysprosium content in NdFeB magnets?

Typically 50–70% reduction in heavy rare earth content (Dy and/or Tb) at equal coercivity. A conventionally produced N48SH magnet might contain 4–6% Dy by weight; the GBD-processed equivalent contains roughly 1.5–2.5% Dy. The Tb reduction is similar. The cost saving on heavy rare earth content alone often exceeds the cost premium of the GBD processing step.

Are GBD-processed magnets the same performance as conventional NdFeB?

Same or slightly better. GBD-processed magnets achieve identical coercivity (HcJ) at temperature versus conventionally produced equivalents — the temperature rating is unchanged. Remanence (Br) and energy product (BHmax) are typically slightly higher because the grain interiors are not diluted with heavy rare earth additions. A GBD-processed N48SH commonly delivers ~1 MGOe higher BHmax than a non-GBD N48SH at the same 150°C rating.

Does GBD processing exempt NdFeB magnets from China's export controls?

No. GBD-processed magnets still contain dysprosium and/or terbium, just less of it. They remain subject to MOFCOM export licensing under the April 2025 rules. GBD reduces cost and supply-chain exposure to heavy rare earth price volatility — it does not bypass licensing. A capable supplier handles the export license whether the magnet is GBD-processed or not. See China rare earth export controls in 2026.

Which NdFeB grades are available with GBD processing?

All high-coercivity grades that contain Dy or Tb: H, SH, UH, and EH series. The most commonly GBD-processed grades in production are N42SH, N45SH, N48SH, N42UH, and N45UH. Standard N-grades (N35–N52) typically have no heavy rare earth content and do not benefit from GBD.

Should I always specify GBD-processed magnets for high-temperature applications?

Yes, in 2026 GBD should be the default for any SH or UH grade unless there is a specific reason otherwise. The cost premium over conventional production is small or negative once heavy rare earth savings are counted, and the reduced Dy/Tb content directly insulates the program from heavy rare earth price volatility. The only common reason to skip GBD is when an existing PPAP or qualification specifically calls out a non-GBD process — and in that case requalifying with GBD is usually worth doing.

Is GBD processing more expensive than conventional NdFeB production?

The processing step itself adds cost — there is an additional surface treatment and diffusion heat treatment after grinding. But the heavy rare earth savings typically exceed the processing cost, making GBD-processed magnets cost-competitive or slightly cheaper than conventional equivalents at 2026 Dy and Tb pricing. The economics improve further as heavy rare earth prices rise.
