MotorSKU: MR-3120-MOTOR
MR-3120-Motor
Features
- Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
- Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
- Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
- Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
- Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
- High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.
Basic Parameters
Motor Size
37*56.5
Slot Pole Number
14
Rotor Dynamic Balance
≤5mg
Propeller Mounting Hole
M5
Motor Mounting Hole
D19 M3*4
Shaft
5mm
Wire Length
260mm
KV Variants
| KV | Phase Res. | No-Load | Max Thrust | Max Current | Max Power | Motor Wt. | Boxed Wt. |
|---|---|---|---|---|---|---|---|
| 500 | 65mΩ | 1.2A/10V | 6kg | 54A | 2690W | 148g | 170g |
| 700 | 81mΩ | 1.45A/10V | 5kg | 62A | 2067W | 148g | 170g |
| 1000 | 30mΩ | 0.7A/10V | 6kg | 105A | 2636W | 148g | 170g |

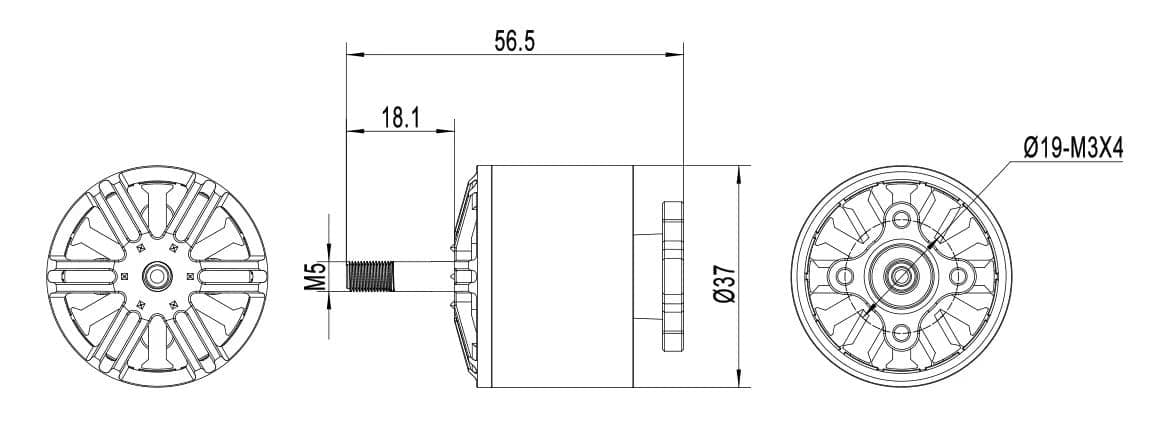

Technical Drawings
