MotorSKU: MR-3115-MOTOR
MR-3115-Motor
Features
- Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
- Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
- Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
- Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
- Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
- High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.
Basic Parameters
Motor Size
37.1*49
Slot Pole Number
14
Rotor Dynamic Balance
≤5mg
Propeller Mounting Hole
M5
Motor Mounting Hole
/
Shaft
5mm
Wire Length
290mm
KV Variants
| KV | Phase Res. | No-Load | Max Thrust | Max Current | Max Power | Motor Wt. | Boxed Wt. |
|---|---|---|---|---|---|---|---|
| 490 | 112.5mΩ | 0.82A/10V | 4kg | 37.7A | 1802W | 115g | 130g |
| 900 | 35.8mΩ | 1.45A/10V | 4kg | 63.9A | 1533W | 115g | 130g |
| 1050 | 21.8mΩ | 1.92A/10V | 4kg | 76.7A | 1837W | 115g | 130g |

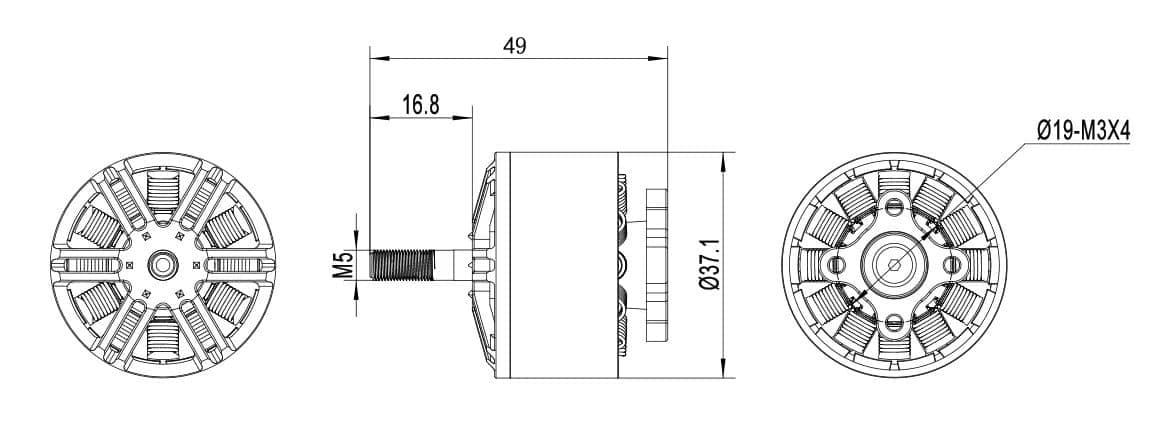

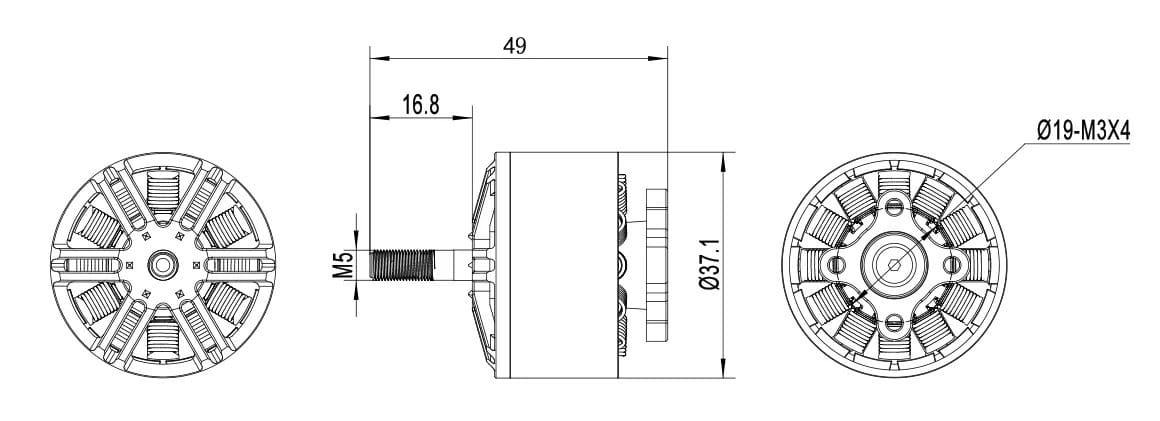

Technical Drawings
