MotorSKU: MR-2812-MOTOR
MR-2812-Motor
Features
- Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
- Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
- Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
- Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
- Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
- High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.
Basic Parameters
Motor Size
33.6*41.7
Slot Pole Number
14
Rotor Dynamic Balance
≤5mg
Propeller Mounting Hole
M5
Motor Mounting Hole
D19 M3*4
Shaft
5mm
Wire Length
260mm
KV Variants
| KV | Phase Res. | No-Load | Max Thrust | Max Current | Max Power | Motor Wt. | Boxed Wt. |
|---|---|---|---|---|---|---|---|
| 925 | 69mΩ | 1.35A/10V | 2.9kg | 50.5A | 1260W | 75g | 92g |
| 1155 | 47mΩ | 1.85A/10V | 3kg | 53.5A | 1350W | 75g | 92g |

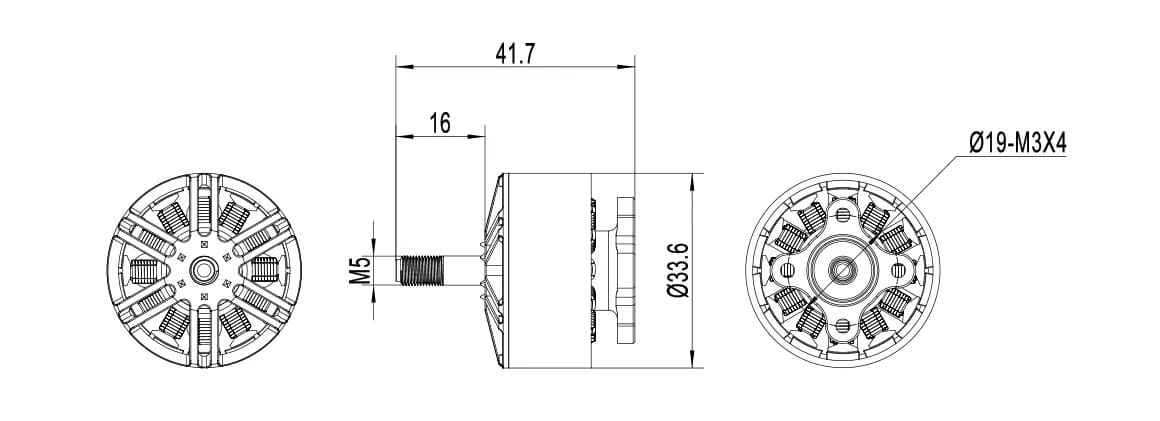

Technical Drawings
