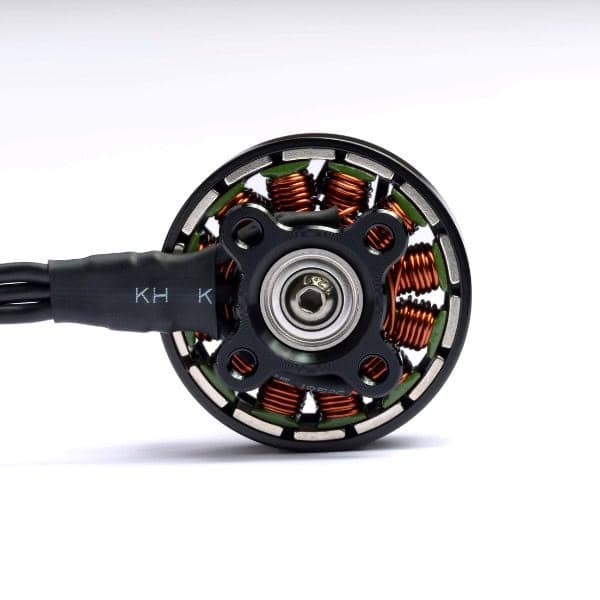

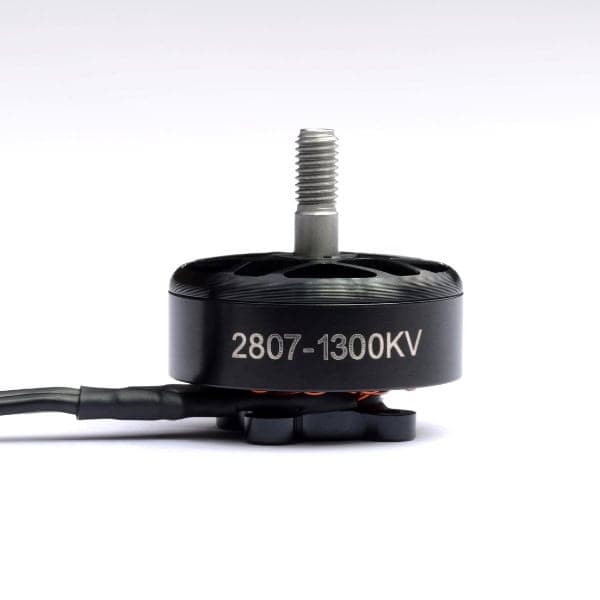

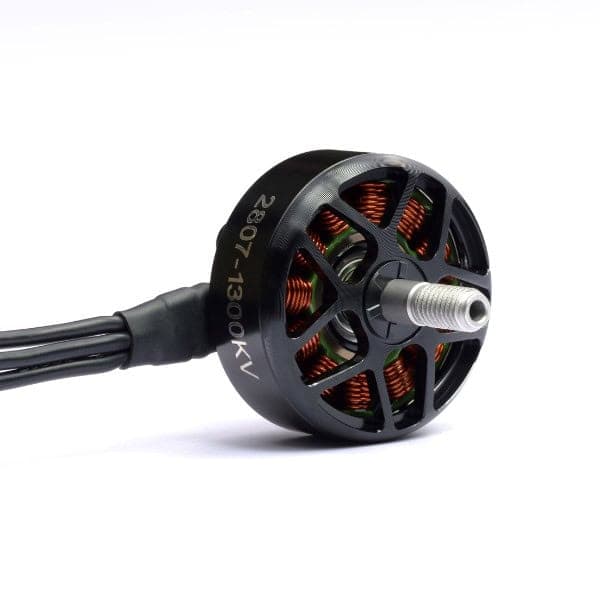

MotorSKU: MR-2807-MOTOR
MR-2807-Motor
Features
- Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
- Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
- Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
- Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
- Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
- High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.
Basic Parameters
Motor Size
33.7*35.8
Slot Pole Number
14
Rotor Dynamic Balance
≤5mg
Propeller Mounting Hole
M5
Motor Mounting Hole
D19 M3*4
Shaft
5mm
Wire Length
260mm
KV Variants
| KV | Phase Res. | No-Load | Max Thrust | Max Current | Max Power | Motor Wt. | Boxed Wt. |
|---|---|---|---|---|---|---|---|
| 1300 | 77mΩ | 1.06A/10V | 2.4kg | 45.5A | 1060W | 48g | 65g |
| 1500 | 61mΩ | 1.25A/10V | 2kg | 47.5A | 1090W | 48g | 65g |

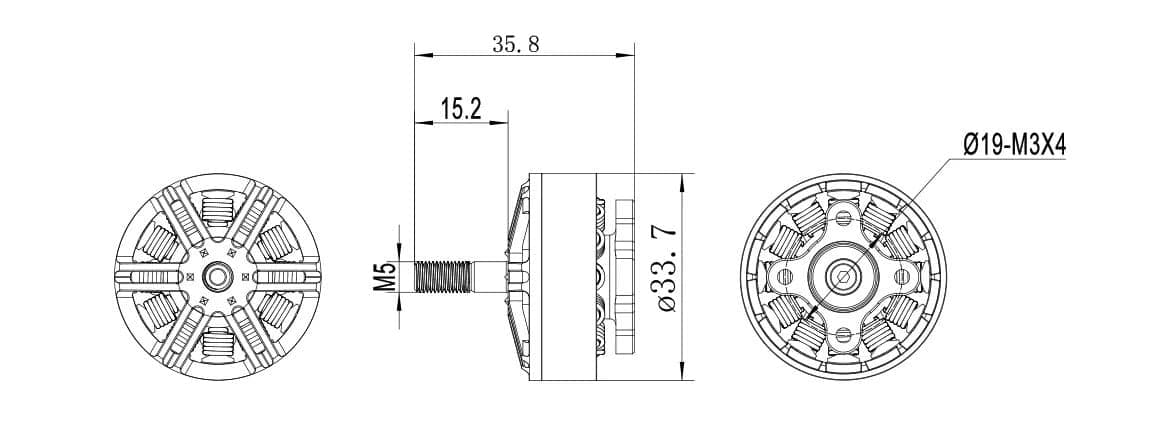

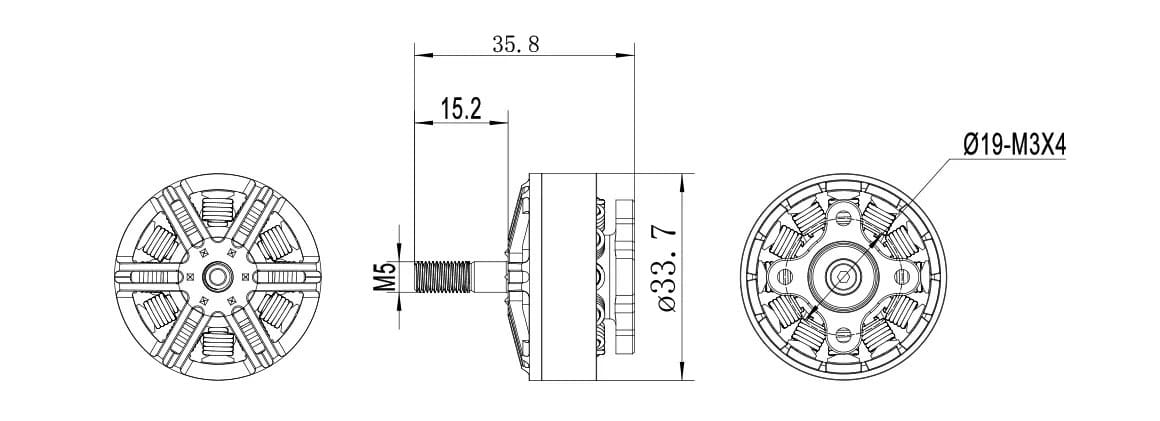

Technical Drawings
